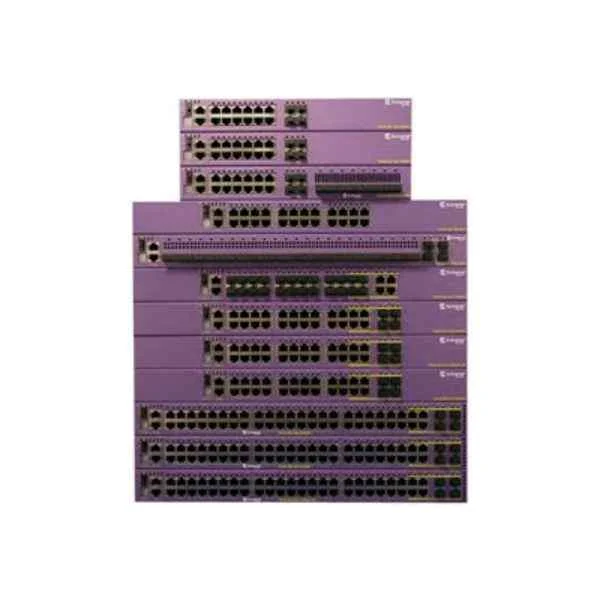

| Device Type | Switch - 48 ports - L3 - Managed - stackable |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000 (PoE+) + 2 x 1 Gigabit / 10 Gigabit SFP+ + 4 x combo SFP |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 740 W |
| Performance | Aggregate switching bandwidth: 176 Gbps ¦ Forwarding rate: 130.9 Mpps ¦ Latency (64-byte packets): 4 µs |
| Capacity | Longest prefix match (LPM) entries (IPv4): 480 ¦ IPv4 hosts: 1000 ¦ Longest prefix match (LPM) entries (IPv6): 240 ¦ User-created VLAN/VMANs: 4096 ¦ Policy profiles: 63 ¦ IPv4 rules: 256 ¦ L2 rules: 184 ¦ QoS hardware queues per port: 8 ¦ Packet buffer size: 3 MB |
| MAC Address Table Size | 16K entries |
| Jumbo Frame Support | 9216 bytes |
| Max Units In A Stack | 8 |
| Remote Management Protocol | CLI |
| Features | Traffic shaping, DoS attack prevention, IPv6 support, half duplex mode, Access Control List (ACL) support, Quality of Service (QoS), IPv4 support, cloud managed, Audio Video Bridging (AVB) |
| Compliant Standards | IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3ae, IEEE 802.3at, IEEE 802.3az |
| Processor | X MIPS: 1 GHz |
| RAM | 1 GB DDR3 SDRAM |
| Flash Memory | 4 GB |
| Status Indicators | Port status, power, fan, management |
| Interfaces | 48 x 1000Base-T RJ-45 PoE+ - 30 W ¦ 8 x 10GBase-X SFP+ ¦ 1 x console RJ-45 management ¦ 1 x management (Gigabit LAN) RJ-45 |
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 1 |
| Max Supported Qty | 2 |
| Power Redundancy | Optional |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 961 Watt |
| Features | Redundant Power System (RPS) connector |
| Compliant Standards | CISPR 22 Class A, CISPR 24, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, CB, AS/NZS 60950-1, EN 61000-4-4, EN 61000-4-3, CCC, EMC, ICES-003 Class A, FCC, EN 61000-4-11, RoHS, CSA C22.2 No. 60950-1-03, UL 60950-1 Second Edition, WEEE, EN 60825-1, CDRH, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, EN 61000-3-2:2006, EN 61000-3-3:2008, VCCI Class A, China RoHS, EN 61000-4-2:2009, EN 61000-4-5:2006, EN 61000-4-6:2009, RCM, EMC 2004/108/EC, LVD 2006/95/EC, 21 CFR 1040.10, IEC 61000-4-2:2008, IEC 61000-4-4:2004, IEC 61000-4-5:2005, IEC 61000-4-6:2008, EN 55022:2006+A1:2007 Class A, EN 55024 Class A, FCC CFR47 Part 15 A, ACMA, Directive 2014/35/EU |
| Software Included | ExtremeXOS Edge |
| Width | 44.1 cm |
| Depth | 36.85 cm |
| Height | 4.4 cm |
| Weight | 6.6 kg |
| Service & Support | Limited warranty - lifetime |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 10 - 95% (non-condensing) |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 10 - 95% (non-condensing) |
